GVA Functional Areas¶
The GVA HMI is organised into functional areas that provide context-specific displays and controls for different vehicle operations.
Functional Area Overview¶
| Key | Area | Description |
|---|---|---|
| 1 | SA | Situational Awareness |
| 2 | WPN | Weapons |
| 3 | DEF | Defence |
| 4 | SYS | Systems |
| 5 | DRV | Driver |
| 6 | STR | Stores |
| 7 | COM | Communications |
| 8 | BMS | Battlespace Management |
Systems (SYS)¶
The Systems functional area provides access to vehicle subsystem status and configuration.
ASLAV System View¶
Example of the Systems display showing ASLAV vehicle subsystem status:
The Systems display shows:
- Subsystem health status
- Component connectivity
- Configuration parameters
- Diagnostic information
Driver (DRV)¶
The Driver functional area provides driving assistance and vehicle camera views.
Front Camera View¶

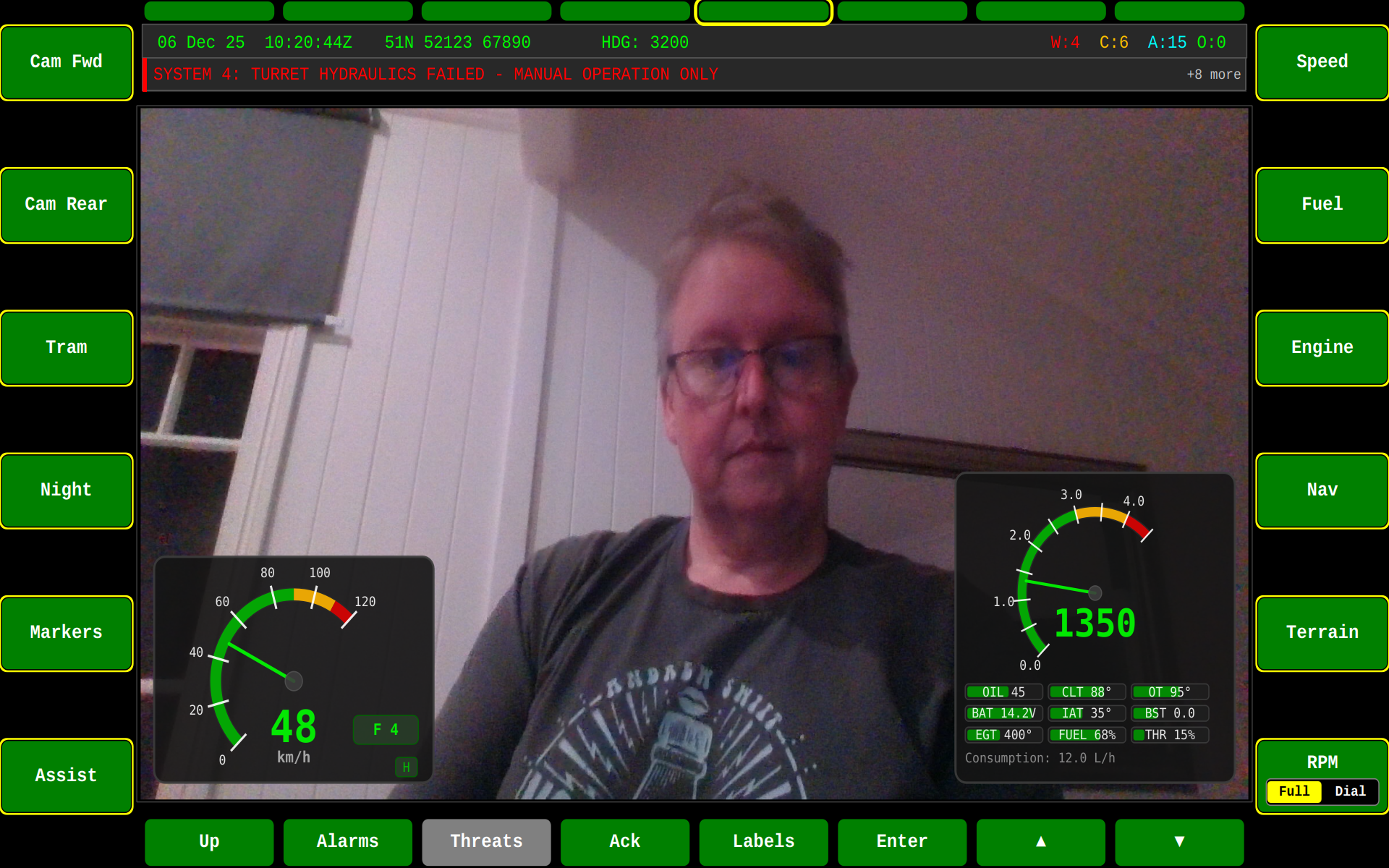

The Driver display can show front-facing camera feed for enhanced situational awareness:
The Driver display supports:
- Front, rear, and side camera views
- Night vision / thermal imaging modes
- Picture-in-picture configurations
- Camera overlay controls
Switching Functional Areas¶
Use the function select buttons (typically 1-8) to switch between functional areas:
# From keyboard in development mode
1 - Situational Awareness
2 - Weapons
3 - Defence
4 - Systems
5 - Driver
6 - Stores
7 - Communications
8 - BMS
Or use the HMI's touchscreen soft keys to navigate between areas.
