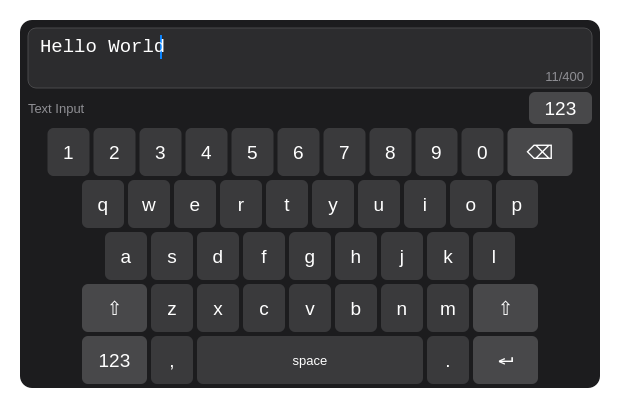

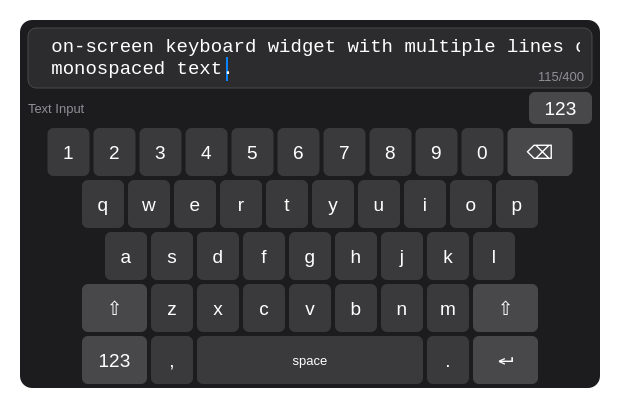

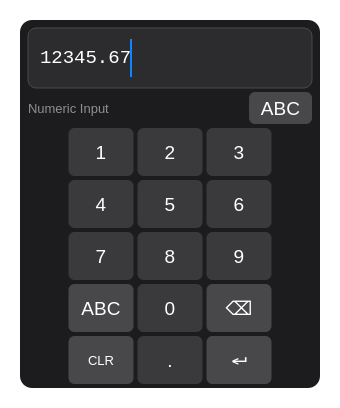

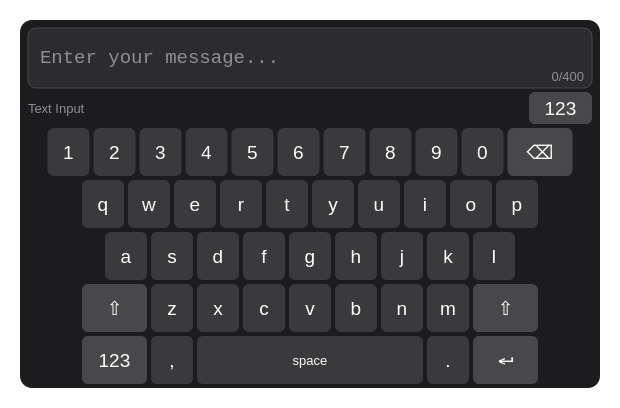

#include <KeyboardWidget.h>

// Create keyboard widget
KeyboardWidget* keyboard = new KeyboardWidget(parent);

// Set mode
keyboard->setMode(KeyboardMode::Alphabetic);  // Text mode
keyboard->setMode(KeyboardMode::Numeric);     // Numbers

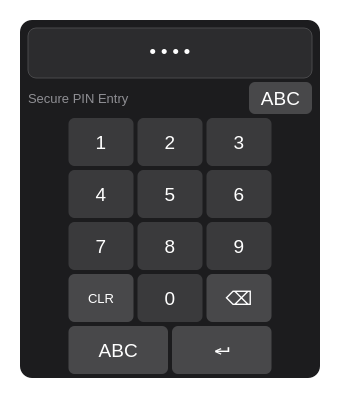

keyboard->setMode(KeyboardMode::Password);    // PIN entry

// Get entered text
QString text = keyboard->getText();

// Connect to signals
connect(keyboard, &KeyboardWidget::textChanged, this, &MyClass::onTextChanged);
connect(keyboard, &KeyboardWidget::enterPressed, this, &MyClass::onEnterPressed);

// Clear input
keyboard->clear();

#include <CompassWidget.h>

// Create compass widget
CompassWidget* compass = new CompassWidget(parent);

// Set heading (degrees)
compass->setHeading(90.0);  // East

// Get current heading
float heading = compass->getHeading();

// Set display options
compass->setShowBearing(true);
compass->setShowMils(false);

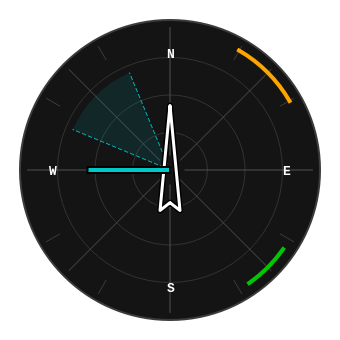

#include <PlanPositionIndicator.h>

// Create PPI widget
PlanPositionIndicator* ppi = new PlanPositionIndicator(parent);

// Set display style
ppi->setStyle(PPIStyle::Classic);

// Set range (meters)
ppi->setRange(5000);

// Add track
Track track;
track.id = "T001";
track.bearing = 45.0;
track.range = 2000;
track.type = TrackType::FRIENDLY;
ppi->addTrack(track);

// Update ownship heading
ppi->setHeading(90.0);

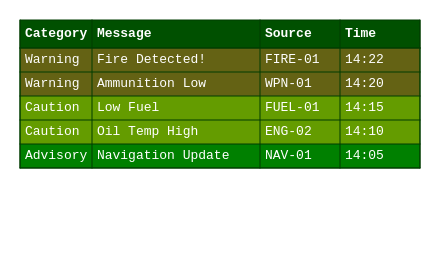

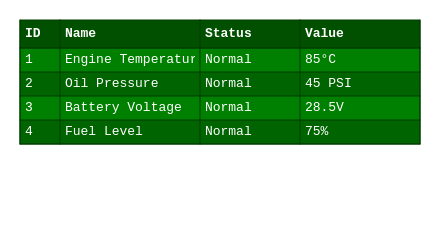

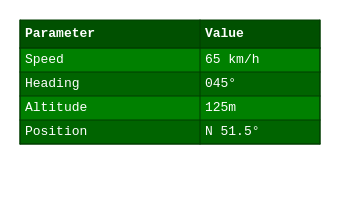

#include <TableWidget.h>

// Create table
TableWidget* table = new TableWidget(parent);

// Set headers
table->setHeaders({"Name", "Value", "Unit", "Status"});

// Add rows
table->addRow({"Oil Temp", "85", "°C", "OK"});
table->addRow({"Oil Press", "3.5", "bar", "OK"});
table->addRow({"RPM", "2400", "rpm", "OK"});

// Set column widths
table->setColumnWidth(0, 150);
table->setColumnWidth(1, 80);

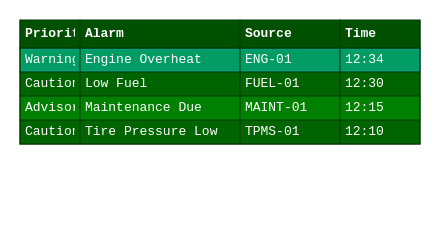

// Highlight row
table->setRowHighlight(1, HighlightType::WARNING);

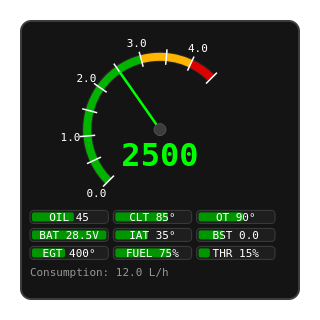

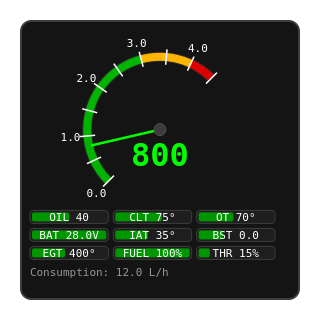

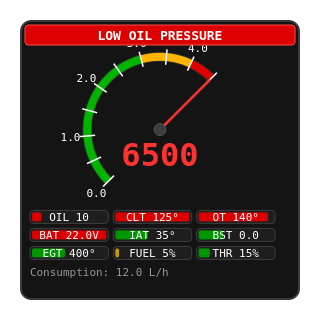

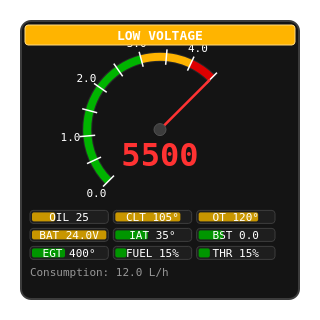

#include <EngineRpmWidget.h>

// Create RPM widget
EngineRpmWidget* rpm = new EngineRpmWidget(280, 280, parent);

// Set current RPM
rpm->setRpm(2400);

// Configure thresholds
rpm->setHighRpmThreshold(4500);  // Amber zone starts
rpm->setRedlineRpm(5500);        // Red zone starts
rpm->setMaxRpm(6000);            // Gauge maximum

// Set engine management indicators
rpm->setOilPressure(45.0, IndicatorLevel::Normal);
rpm->setCoolantTemp(85.0, IndicatorLevel::Normal);
rpm->setOilTemp(95.0, IndicatorLevel::Normal);
rpm->setBatteryVoltage(13.8, IndicatorLevel::Normal);
rpm->setFuelLevel(75.0);
rpm->setThrottlePosition(25.0);

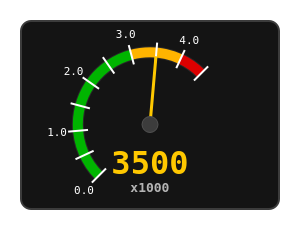

// Compact mode for space-constrained layouts
rpm->setCompactMode(true);

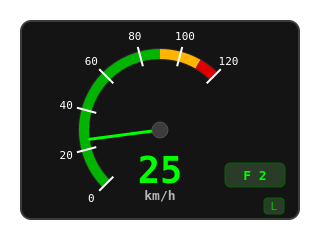

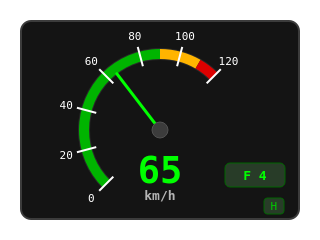

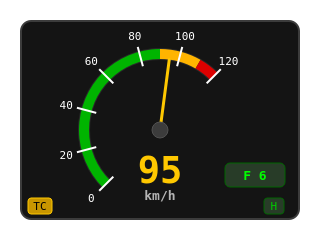

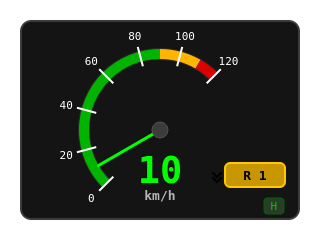

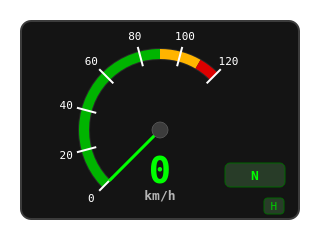

#include <VehicleSpeedWidget.h>

// Create speed widget
VehicleSpeedWidget* speed = new VehicleSpeedWidget(280, 200, parent);

// Set current speed (km/h)
speed->setSpeed(65.0);

// Set display unit
speed->setSpeedUnit(SpeedUnit::KilometersPerHour);
// or
speed->setSpeedUnit(SpeedUnit::MilesPerHour);

// Set gear position
speed->setGearPosition(GearPosition::Forward3);

// Configure thresholds

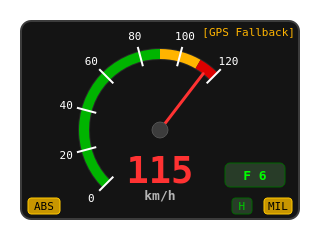

speed->setCautionThreshold(90.0);    // Amber zone
speed->setOverspeedThreshold(110.0); // Red zone
speed->setMaxSpeed(120.0);           // Gauge maximum

// Set speed source
speed->setSpeedSource(SpeedSource::WheelSpeed);

// Status indicators

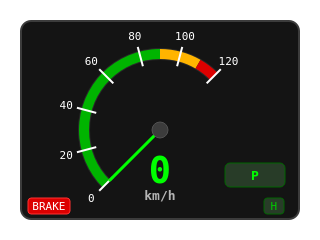

speed->setParkingBrakeEngaged(false);
speed->setAbsFault(false);
speed->setTractionControlActive(true);
speed->setTransferCaseHigh(true);  // false = low range
speed->setDrivelineFault(false);

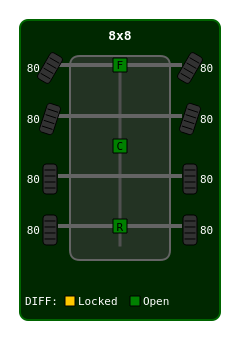

#include <VehicleWheelsWidget.h>

// Create wheels widget
VehicleWheelsWidget* wheels = new VehicleWheelsWidget(200, 300, parent);

// Set steering angle (-45 to +45 degrees)
wheels->setSteeringAngle(-15.0);  // Turning left

// Set tire pressures (wheel indices 0-7: 1L, 1R, 2L, 2R, 3L, 3R, 4L, 4R)
wheels->setTirePressure(0, 85.0);  // Axle 1 Left
wheels->setTirePressure(1, 85.0);  // Axle 1 Right
wheels->setTirePressure(2, 90.0);  // Axle 2 Left
wheels->setTirePressure(3, 90.0);  // Axle 2 Right
wheels->setTirePressure(4, 95.0);  // Axle 3 Left
wheels->setTirePressure(5, 95.0);  // Axle 3 Right
wheels->setTirePressure(6, 95.0);  // Axle 4 Left
wheels->setTirePressure(7, 95.0);  // Axle 4 Right

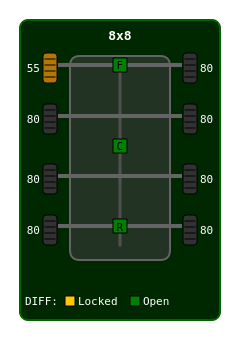

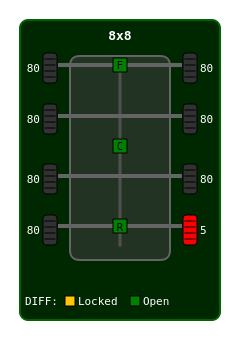

// Set tire pressure status
wheels->setTirePressureStatus(2, TirePressureStatus::Low);
wheels->setTirePressureStatus(5, TirePressureStatus::Critical);

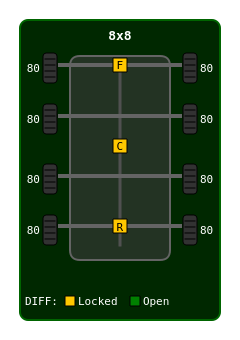

// Set differential locks
wheels->setFrontDiffLock(DiffLockStatus::Unlocked);
wheels->setCenterDiffLock(DiffLockStatus::Locked);
wheels->setRearDiffLock(DiffLockStatus::Locked);

// Wheel rotation animation (for moving vehicle)
wheels->setWheelRotationSpeed(360.0);  // Degrees per second

        FRONT
    ┌─────────────┐
    │  1L    1R   │  Axle 1 (steered)
    │             │
    │  2L    2R   │  Axle 2 (steered)
    │             │
    │  3L    3R   │  Axle 3
    │             │
    │  4L    4R   │  Axle 4
    └─────────────┘
         REAR

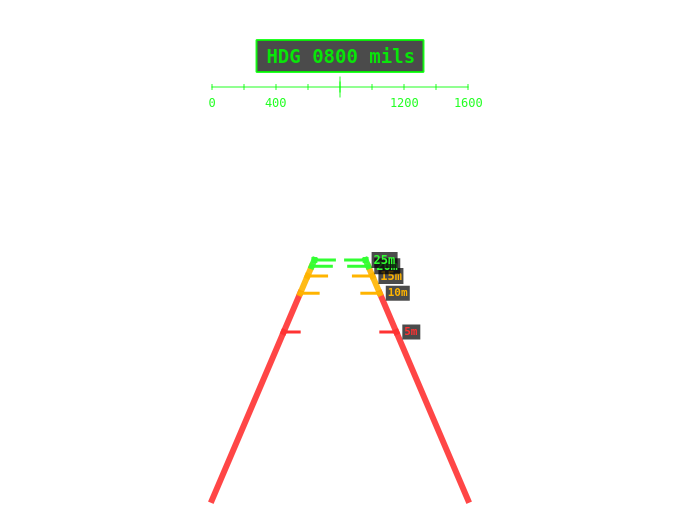

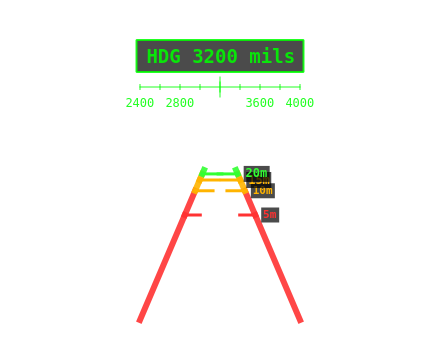

#include <DrivingAidsOverlay.h>

// Create overlay widget
DrivingAidsOverlay* overlay = new DrivingAidsOverlay(640, 480, parent);

// Set heading (degrees)

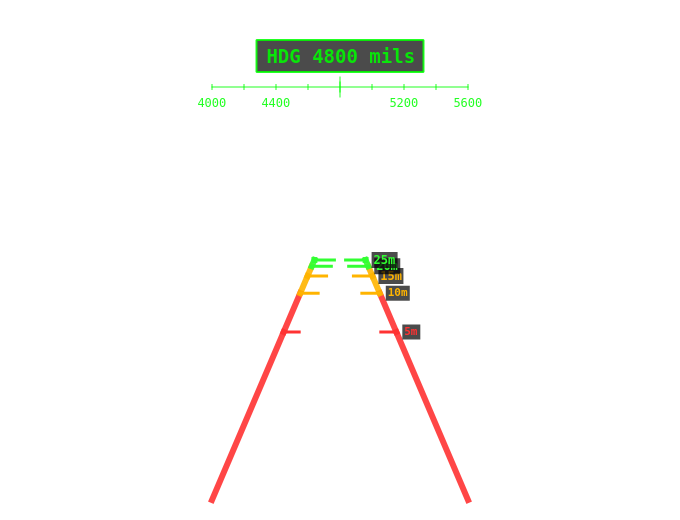

overlay->setHeading(270.0);  // West

// Configure display options
overlay->setShowTramlines(true);
overlay->setShowDistanceMarkers(true);
overlay->setShowHeading(true);
overlay->setShowHorizon(true);

// Set tramline parameters
overlay->setTramlineWidth(2.5);  // Vehicle width in meters
overlay->setMaxDistance(50.0);   // Maximum visible distance

// Compact mode
overlay->setCompactMode(true);

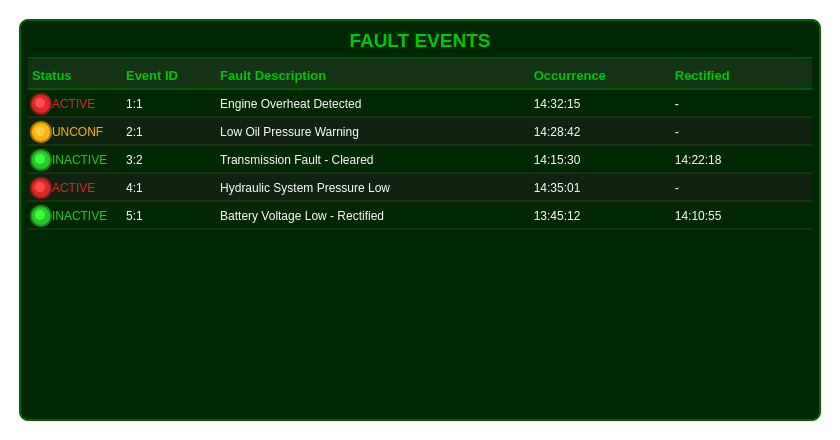

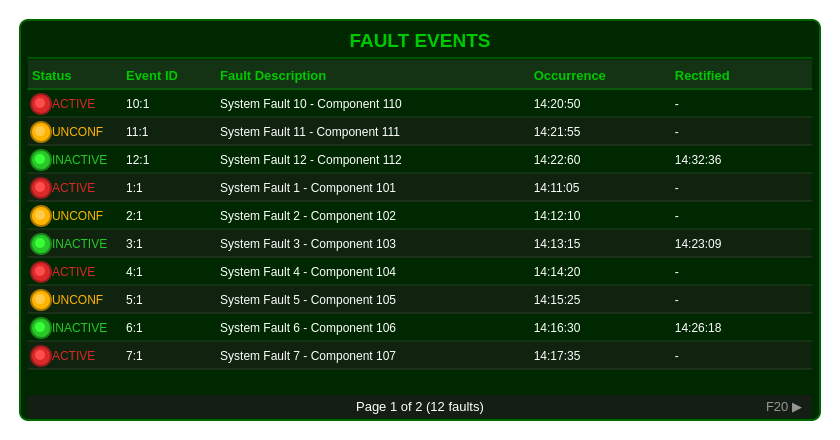

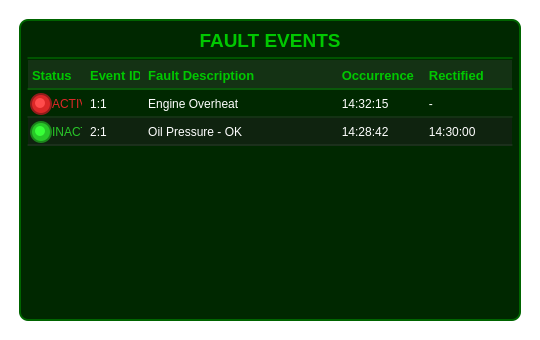

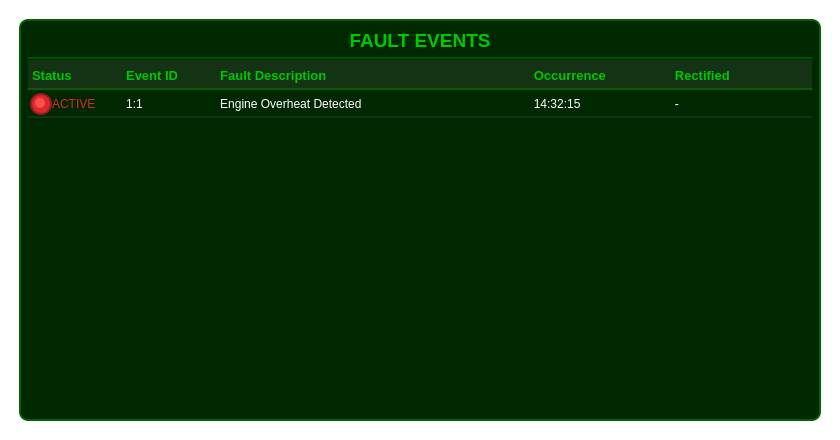

#include <HumsFaultsWidget.h>

// Create faults widget
HumsFaultsWidget* faults = new HumsFaultsWidget(600, 350, parent);

// Add fault event
FaultEventInfo fault;
fault.sourceResourceId = 11001;
fault.faultState = "ACTIVE";
fault.faultDescription = "Engine temperature sensor malfunction";
fault.occurrenceTime = "2024-12-08T14:30:00Z";
faults->updateFault("11001:1", fault);

// Update fault state
fault.faultState = "INACTIVE";
fault.timeRectified = "2024-12-08T14:45:00Z";
faults->updateFault("11001:1", fault);

// Clear all faults
faults->clearAll();

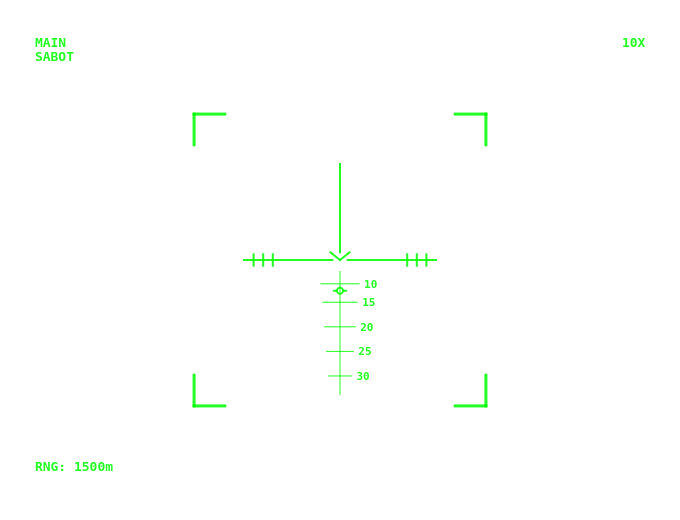

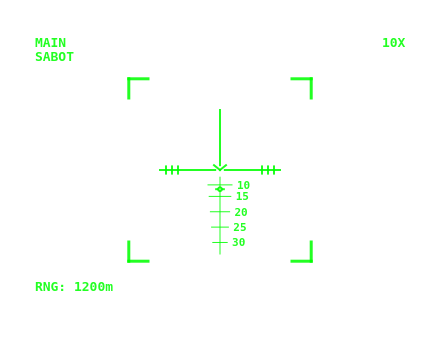

#include <ReticleSightWidget.h>

// Create reticle widget
ReticleSightWidget* reticle = new ReticleSightWidget(640, 480, parent);

// Set reticle type
reticle->setReticleType(ReticleType::M1A2Abrams);
// or
reticle->setReticleType(ReticleType::Waterfall);

// Configure weapon settings
reticle->setWeaponType("120MM MAIN GUN");
reticle->setAmmoType("M829A4 SABOT");

// Set range (meters)
reticle->setRange(2400);

// Enable laser rangefinder indication
reticle->setLaserActive(true);
reticle->setLasedRange(2387);

// Set zoom level
reticle->setZoomLevel(10);  // 10x magnification

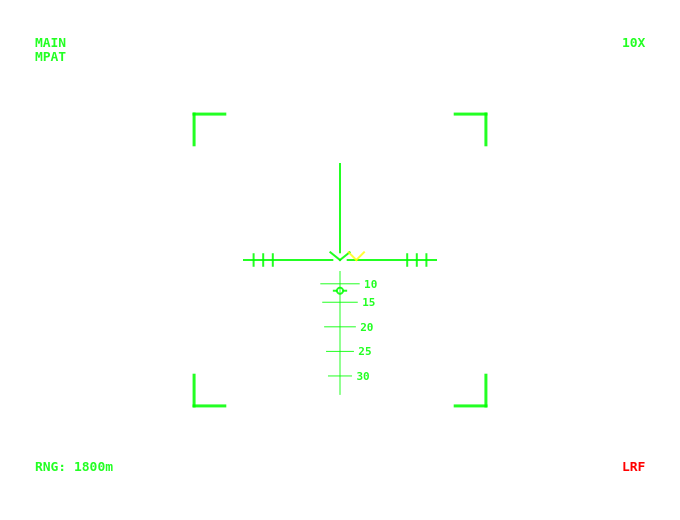

// Lead compensation for moving targets
reticle->setLeadAngle(2.5);  // mils

namespace GVAColours {
    const QColor Background(0x1A, 0x1A, 0x2E);
    const QColor Text(0xFF, 0xFF, 0xFF);
    const QColor Highlight(0x00, 0x66, 0xFF);
    const QColor Warning(0xFF, 0x98, 0x00);
    const QColor Critical(0xD3, 0x2F, 0x2F);
    const QColor OK(0x4C, 0xAF, 0x50);
    const QColor Border(0x40, 0x40, 0x60);
}
