mediax::rtp::uncompressed::RtpUncompressedPayloader Class Reference

Manage an RTP stream. More...

#include <rtp_uncompressed_payloader.h>

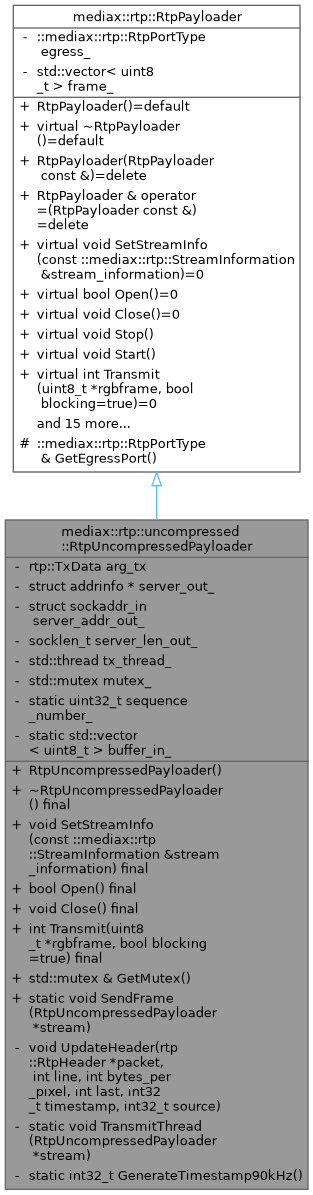

Inheritance diagram for mediax::rtp::uncompressed::RtpUncompressedPayloader:

Collaboration diagram for mediax::rtp::uncompressed::RtpUncompressedPayloader:

Public Member Functions
	RtpUncompressedPayloader ()
	The supported colour spaces.
	~RtpUncompressedPayloader () final
	Destroy the Rtp Stream object.
void	SetStreamInfo (const ::mediax::rtp::StreamInformation &stream_information) final
	Configure an RTP output stream.
bool	Open () final
	Open the RTP stream.
void	Close () final
	Close the RTP stream.
int	Transmit (uint8_t *rgbframe, bool blocking=true) final
	Transmit an RGB buffer.
std::mutex &	GetMutex ()
	Get the Mutex object.
Public Member Functions inherited from mediax::rtp::RtpPayloader
	RtpPayloader ()=default
	Construct a new Rtp Payloader object.
virtual	~RtpPayloader ()=default
	Destroy the Rtp Payloader object.
	RtpPayloader (RtpPayloader const &)=delete
	Construct a new Rtp Payloader object.
RtpPayloader &	operator= (RtpPayloader const &)=delete
	Construct a new Rtp Payloader object.
virtual void	Stop ()
	Stop a stream so it can be quickly restarted. Do not close.
virtual void	Start ()
	Restart a stopped stream.
mediax::rtp::ColourspaceType	GetColourSpace () const
	Get the Colour Space object of the incoming stream.
void	SetColourSpace (mediax::rtp::ColourspaceType colourspace)
	Set the Colour Space object.
uint32_t	GetHeight () const
	Get the Height object of the incoming stream.
void	SetHeight (uint32_t height)
	Set the Height object.
uint32_t	GetWidth () const
	Get the Width object of the incoming stream.
void	SetWidth (uint32_t width)
	Set the Width object.
uint32_t	GetFrameRate () const
	Get the Frame Rate of the incoming stream.
void	SetFrameRate (uint32_t framerate)
	Set the Frame Rate object.
std::string	GetIpAddress () const
	Get the Ip Address of the incoming stream.
void	SetIpAddress (std::string_view ip_address)
	Set the Ip Address object.
uint32_t	GetPort () const
	Get the Port of the incoming stream.
void	SetPort (uint32_t port)
	Set the Port object.
std::vector< uint8_t > &	GetBuffer ()
	Get the Buffer object.
uint32_t	GetBufferSize () const
	Get the Buffer Size object.
void	SetBufferSize (uint32_t size)
	Set the Buffer Size object.

Static Public Member Functions
static void	SendFrame (RtpUncompressedPayloader *stream)
	Send a frame.

Private Member Functions
void	UpdateHeader (rtp::RtpHeader *packet, int line, int bytes_per_pixel, int last, int32_t timestamp, int32_t source)
	Populate the RTP header.

Static Private Member Functions
static void	TransmitThread (RtpUncompressedPayloader *stream)
	Transmit RTP data to the network using a separate thread.
static int32_t	GenerateTimestamp90kHz ()
	Get a 90Htz timestamp.

Private Attributes
rtp::TxData	arg_tx
	Transmit arguments used by the thread.
struct addrinfo *	server_out_
	The server address information.
struct sockaddr_in	server_addr_out_
	The socket for the outgoing stream.
socklen_t	server_len_out_
	The length of the server address.
std::thread	tx_thread_
	Arguments sent to thread.
std::mutex	mutex_
	The mutex for the transmit thread.

Static Private Attributes
static uint32_t	sequence_number_ = 0
	The incremental sequence numer for transmitting RTP packets.
static std::vector< uint8_t >	buffer_in_
	The buffer for the incoming RTP data.

Additional Inherited Members
Protected Member Functions inherited from mediax::rtp::RtpPayloader
::mediax::rtp::RtpPortType &	GetEgressPort ()
	Get the Egress Port object.

Detailed Description

Manage an RTP stream.

Constructor & Destructor Documentation

RtpUncompressedPayloader()

mediax::rtp::uncompressed::RtpUncompressedPayloader::RtpUncompressedPayloader ( )

default

The supported colour spaces.

Construct a new Rtp Stream object

Parameters

height	in pixels of the RTP stream
width	in pixels of the RTP stream

Member Function Documentation

Close()

void mediax::rtp::uncompressed::RtpUncompressedPayloader::Close ( )

finalvirtual

Close the RTP stream.

Implements mediax::rtp::RtpPayloader.

GenerateTimestamp90kHz()

int32_t mediax::rtp::uncompressed::RtpUncompressedPayloader::GenerateTimestamp90kHz ( )

staticprivate

Get a 90Htz timestamp.

Returns

int32_t The current time stamp

GetMutex()

std::mutex & mediax::rtp::uncompressed::RtpUncompressedPayloader::GetMutex ( )

inline

Get the Mutex object.

Returns

std::mutex&

Open()

bool mediax::rtp::uncompressed::RtpUncompressedPayloader::Open ( )

finalvirtual

Open the RTP stream.

Returns

true

false

Implements mediax::rtp::RtpPayloader.

SendFrame()

void mediax::rtp::uncompressed::RtpUncompressedPayloader::SendFrame ( RtpUncompressedPayloader *  stream )

static

Send a frame.

Parameters

stream

The RtpUncompressedPayloader object

Note DEF-STAN 00-082 starts line numbers at 1, gstreamer starts at 0 for raw video

SetStreamInfo()

void mediax::rtp::uncompressed::RtpUncompressedPayloader::SetStreamInfo ( const ::mediax::rtp::StreamInformation &  stream_information )

finalvirtual

Configure an RTP output stream.

Parameters

stream_information

The stream information

Implements mediax::rtp::RtpPayloader.

Transmit()

int mediax::rtp::uncompressed::RtpUncompressedPayloader::Transmit ( uint8_t *  rgbframe, bool  blocking = true  )

finalvirtual

Transmit an RGB buffer.

Parameters

rgbframe	pointer to the frame data
blocking	defaults to true, will wait till frame has been transmitted

Returns

int

Implements mediax::rtp::RtpPayloader.

TransmitThread()

void mediax::rtp::uncompressed::RtpUncompressedPayloader::TransmitThread ( RtpUncompressedPayloader *  stream )

staticprivate

Transmit RTP data to the network using a separate thread.

Parameters

stream

The RtpUncompressedPayloader object

UpdateHeader()

void mediax::rtp::uncompressed::RtpUncompressedPayloader::UpdateHeader ( rtp::RtpHeader *  packet, int  line, int  bytes_per_pixel, int  last, int32_t  timestamp, int32_t  source  )

private

Populate the RTP header.

Parameters

packet	the RTP header
line	the line number
bytes_per_pixel	the bytes per pixel
last	true if last line
timestamp	the timestamp
source	the source id

---

The documentation for this class was generated from the following files:

• src/uncompressed/rtp_uncompressed_payloader.h
• src/uncompressed/rtp_uncompressed_payloader.cc
