BMS - Battlespace Management System¶

The BMS (Battlespace Management System) is a comprehensive tactical mapping and situational awareness application. It can operate both as a third-party extension to the GVA HMI or as a standalone tactical display application.

Overview¶

The BMS application provides:

• Multi-source map tiles - Satellite, topographic, terrain, street, and nautical charts
• Military symbology - Full MIL-STD-2525D symbol rendering with APP-6D icons
• Live data connectors - AIS vessel tracking, ADS-B aircraft tracking, NMEA GPS, Cursor-on-Target (CoT)
• Weather overlays - Real-time rain radar and cloud/satellite imagery from RainViewer
• Layer management - Toggle visibility of airports, airspaces, navaids, maritime zones, and more
• Symbol interaction - Radial menu for edit, delete, annotate, and move operations
• Point dropper - Add tactical symbols with selectable type, affiliation, and SIDC
• Route visualization - Display planned routes and live tracking breadcrumbs
• GVA HMI integration - Third-party session with bezel button and touch event support
• Offline tile serving - Local tile server provides cached map tiles for disconnected operation

Offline Operation¶

The BMS integrates with the Tile Server for fully offline map display. When the tile server is running, the BMS can switch to Local - * map sources which fetch tiles from http://localhost:8070 instead of remote servers.

Pre-mission workflow:

1. Sync tiles for the area of operations using the tile server CLI
2. Start the tile server systemd service
3. Launch the BMS — select any Local - * source for offline maps

Local tile sources use the noCache flag to avoid double-caching since tiles are already stored in the tile server's shared cache at /var/cache/gva-maptiles.

See the Tile Server documentation for full details on syncing tiles, licensing, and deployment.

Standalone Mode¶

The BMS supports a standalone mode (--standalone) with enhanced features:

• Floating toolbar - Drawing tools, point dropper, map layer selector, data sources
• Popup panels - Draggable, semi-transparent panels for settings and options
• Position memory - Panels remember their last position when reopened
• Live data toggles - Enable/disable individual data connectors

Running Standalone¶

cd build/bin
./gva-qt6-app-bms --standalone

Screenshots¶

Map Layers¶

The BMS supports multiple map tile providers:

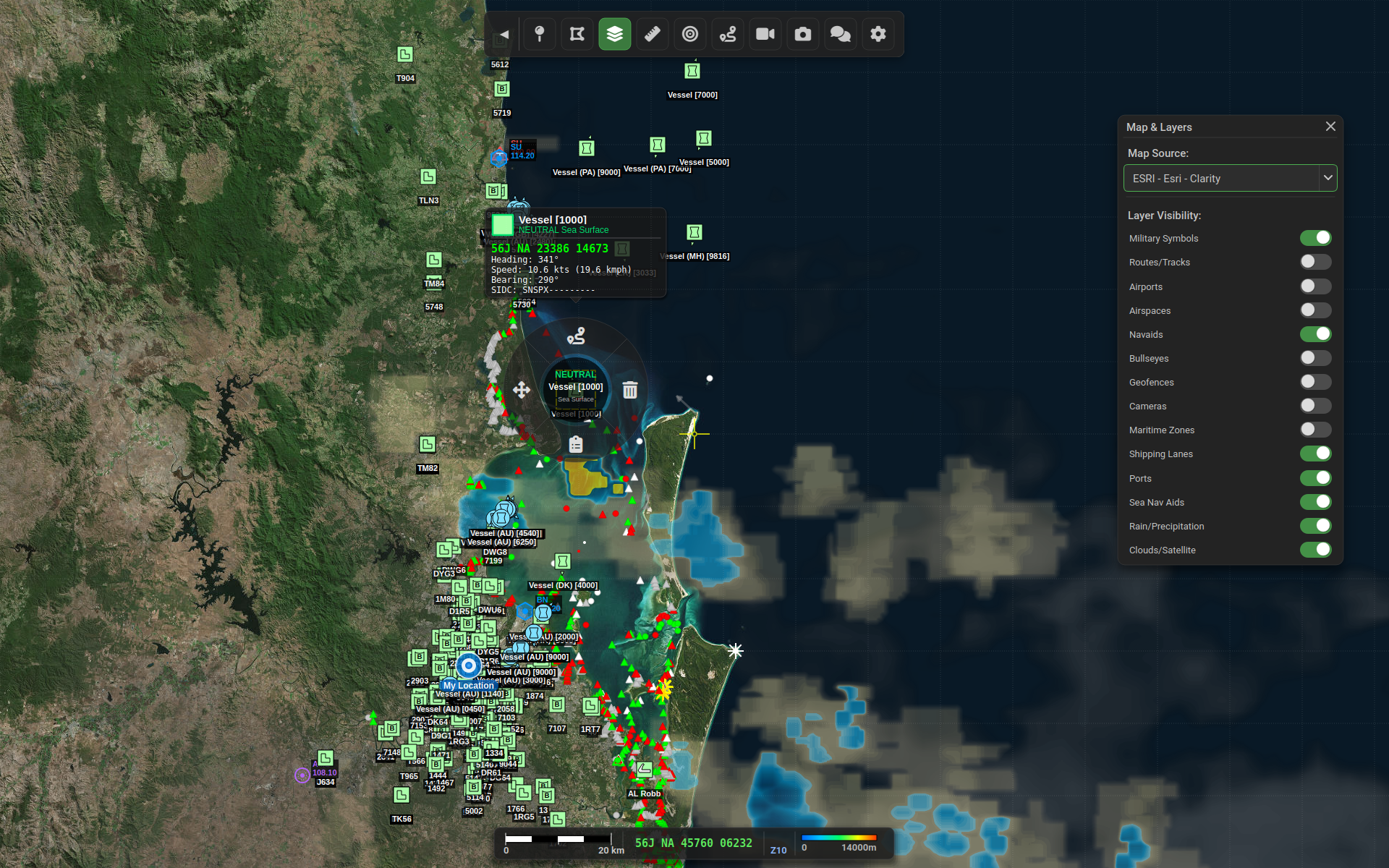

Satellite¶

ESRI World Imagery satellite view.

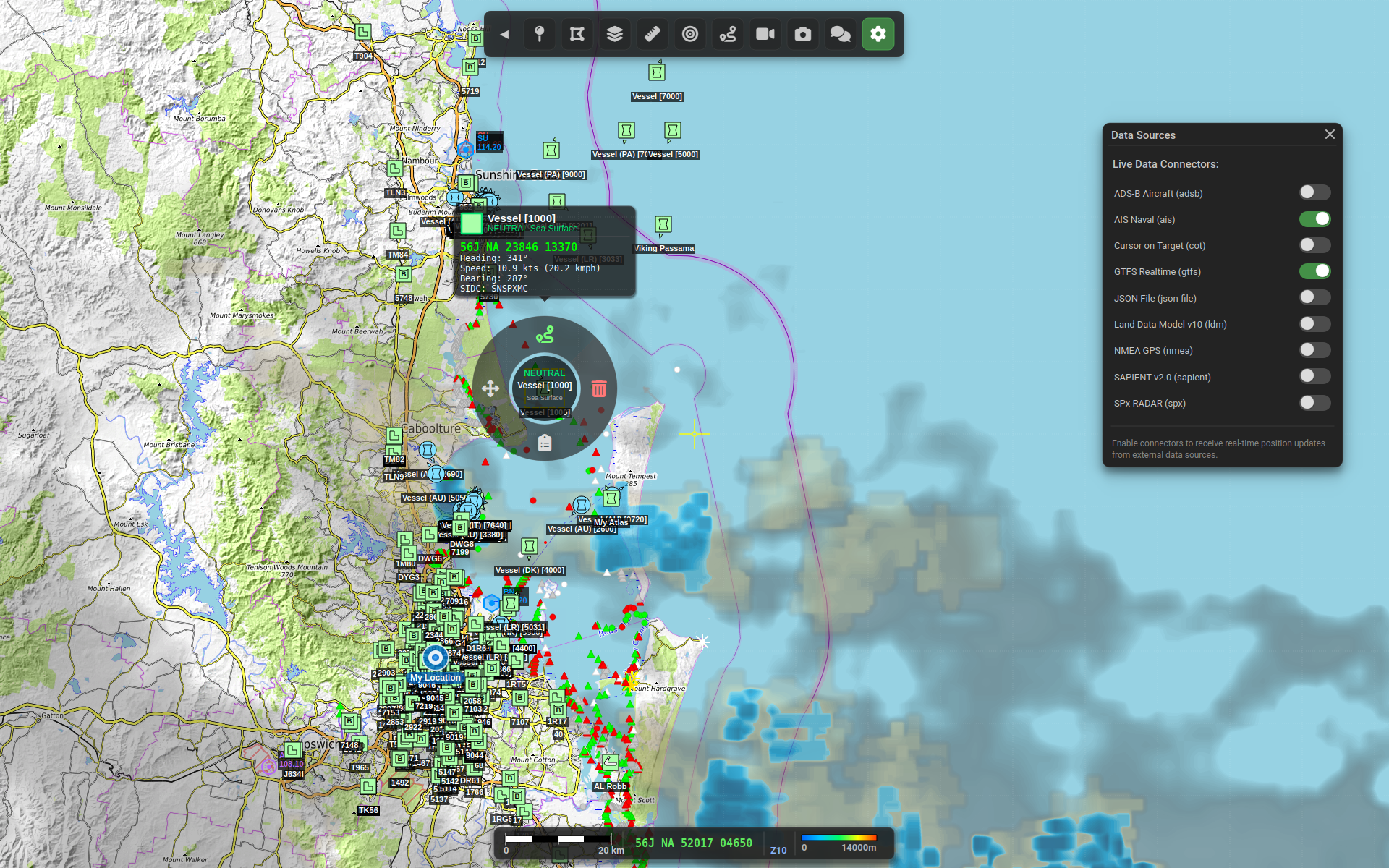

Topographic¶

ESRI World Topographic map with elevation contours.

Street¶

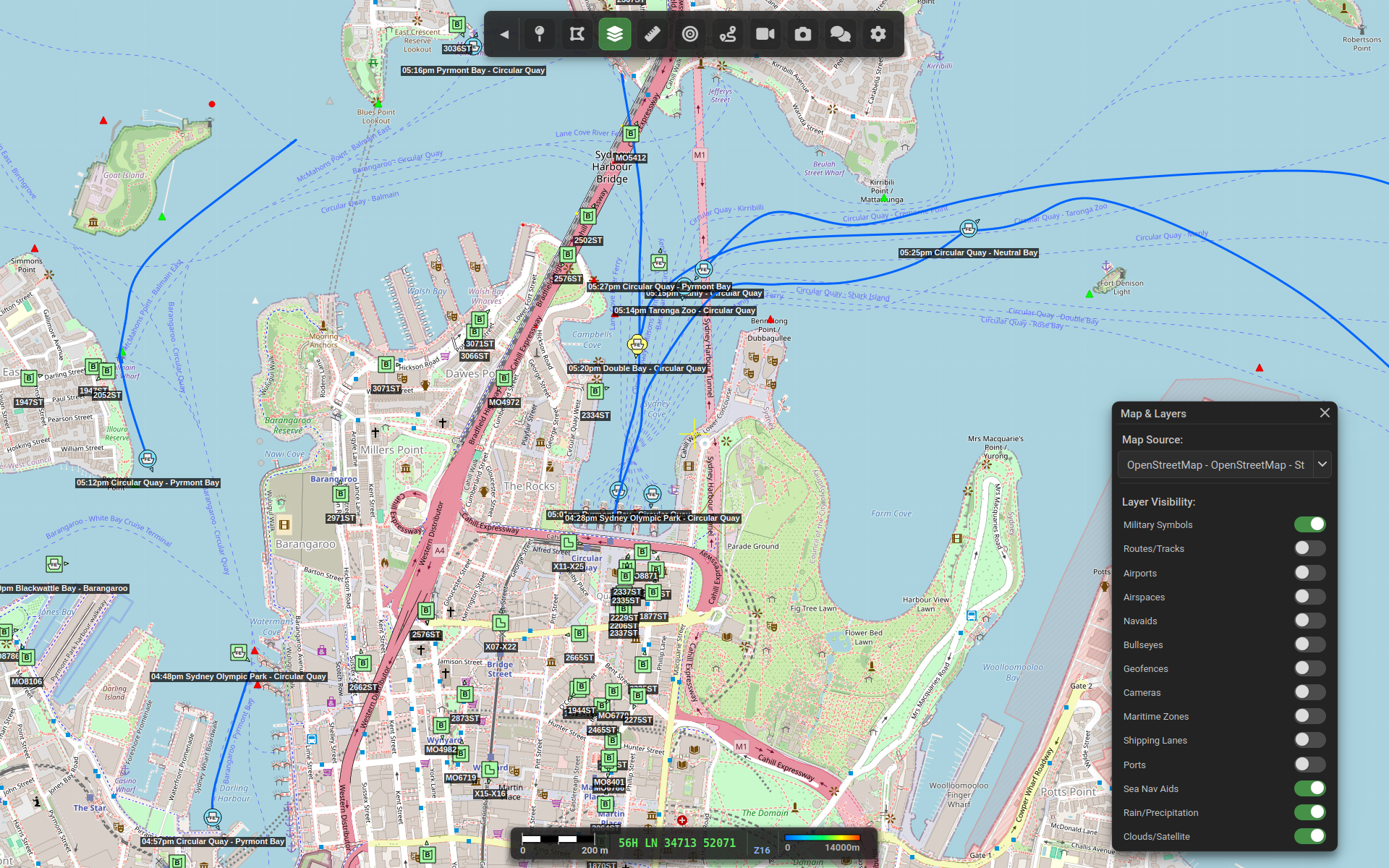

OpenStreetMap street map view.

HMI Integration Views¶

When running within the GVA HMI, the BMS renders to the BMS functional area screen:

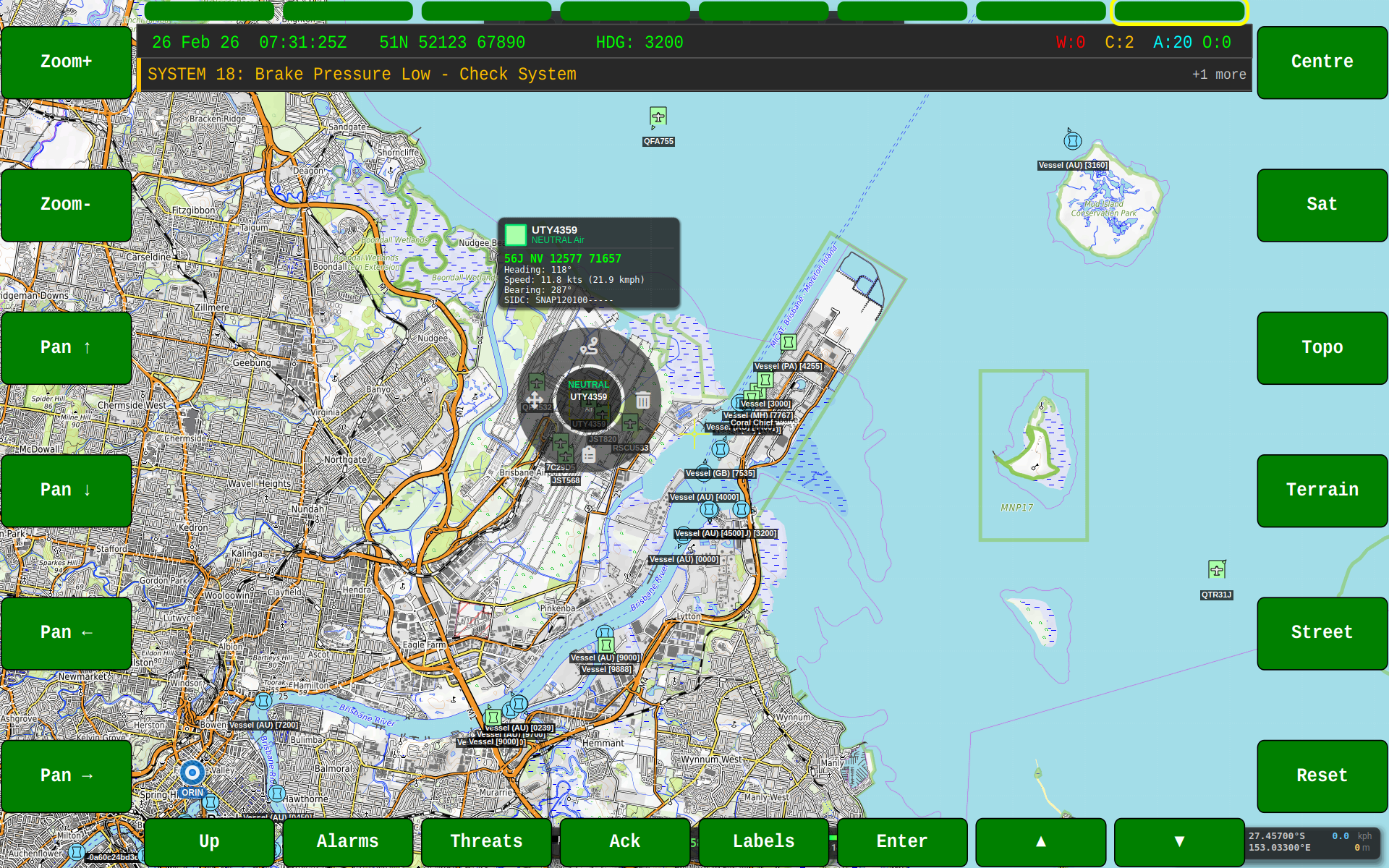

Map View¶

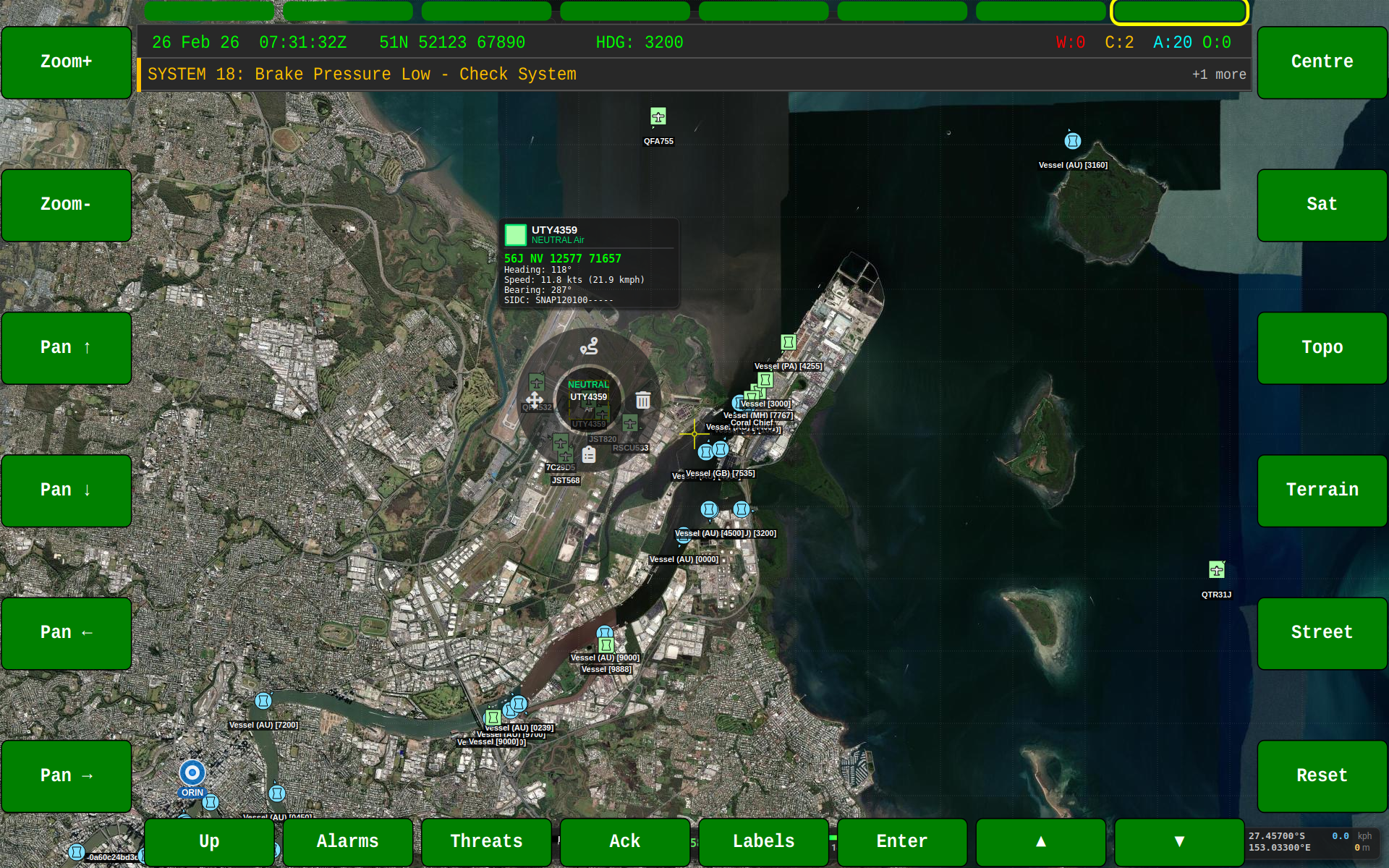

Satellite View¶

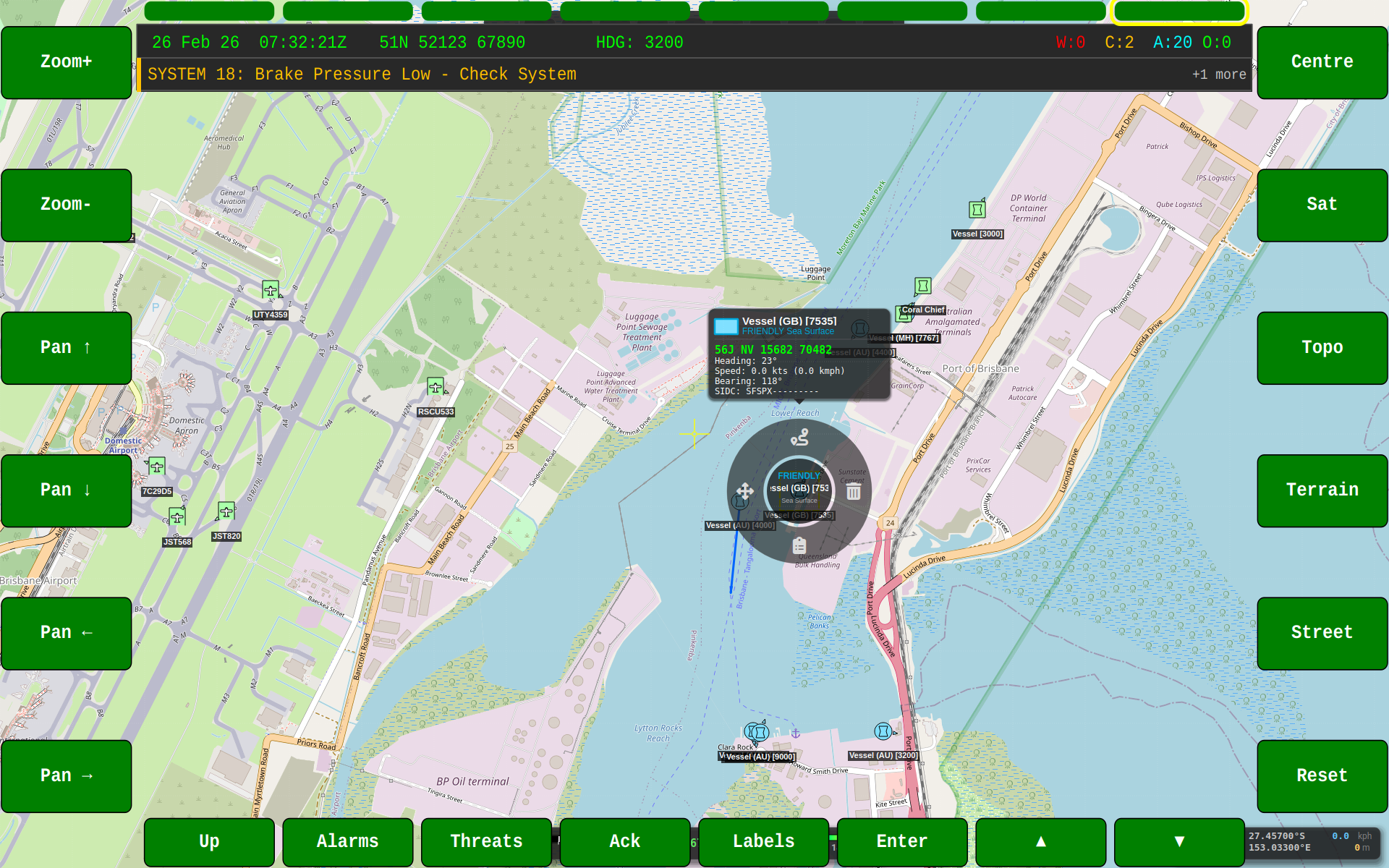

Topographic View¶

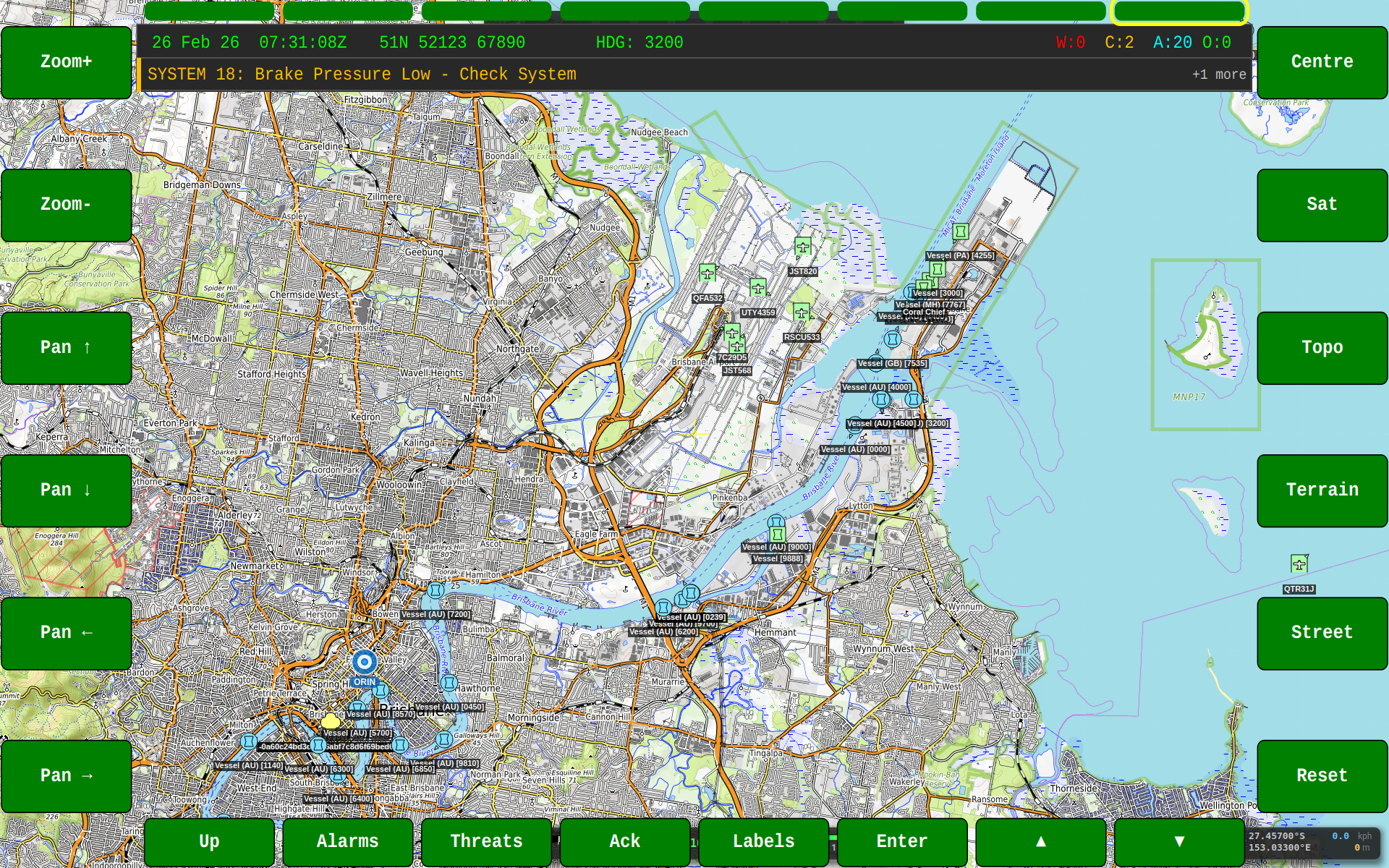

Map Application¶

Weather Overlay¶

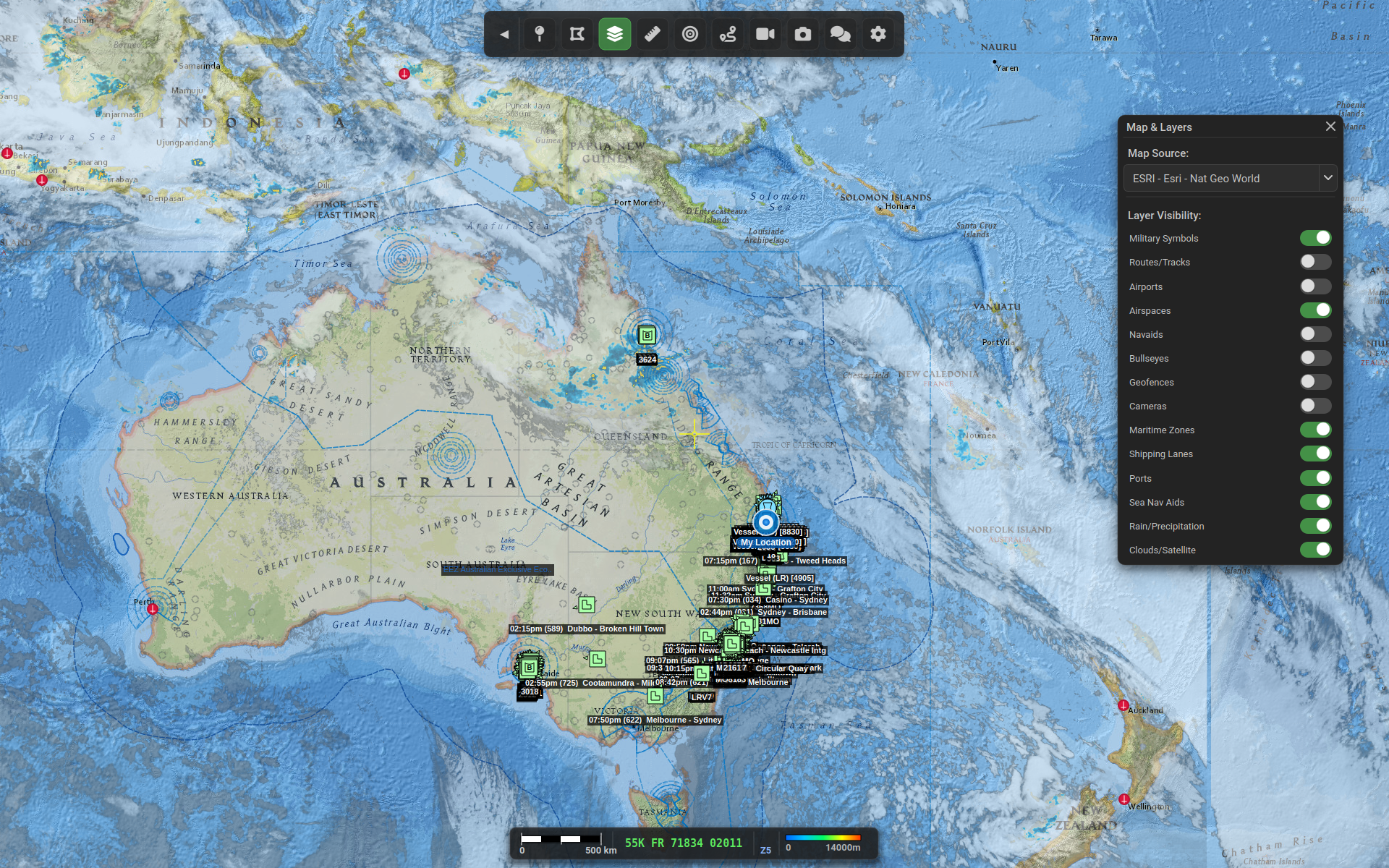

Real-time weather radar overlay showing precipitation.

Symbol Interaction¶

The BMS provides a radial menu for interacting with military symbols on the map.

The radial menu provides options to:

• Delete - Remove the symbol from the map
• Note - Add or edit a text annotation
• Waypoint - Set a navigation waypoint
• Move - Reposition the symbol

Symbol Notes¶

Symbols can have notes attached that display as tooltips:

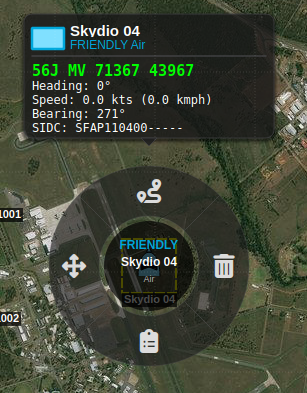

With Note¶

Without Note¶

Connection States¶

Waiting for External Application¶

When the HMI is waiting for the BMS application to connect:

Dial Move Not Displayed¶

Radial menu in hidden state during map navigation:

Running the BMS¶

Prerequisites¶

• GVA HMI must be running
• Registry service must be running
• Network connectivity on DDS domain 0

Command Line Options¶

./gva-qt6-app-bms [options]

Standalone Mode¶

Run the BMS in standalone mode for full tactical display:

cd build/bin
./gva-qt6-app-bms --standalone

HMI Integration Mode¶

Run the BMS as a third-party application for the GVA HMI:

cd build/bin
./gva-qt6-app-bms

The BMS will:

1. Register with the Registry service to obtain a Resource ID
2. Publish its Third Party Session to the HMI
3. Configure bezel button labels (F1-F12) for map controls
4. Display fullscreen and wait for HMI connection

With HMI Integration¶

For full integration with the GVA HMI:

cd build/bin

# Start services
./gva-qt6-registry &
./gva-qt6-alarms &

# Start BMS
./gva-qt6-app-bms &

# Start HMI
./gva-qt6-hmi &

Or use the provided script:

./run_gva_bms.sh

Accessing from HMI¶

1. Start the HMI and BMS as shown above
2. Press F28 (BMS) on the HMI function select bar
3. The HMI control area will display "Waiting for external application..."
4. Once connected, the BMS map view appears in the HMI

Standalone Toolbar¶

In standalone mode, a floating toolbar provides quick access to drawing and configuration tools:

Status Bar¶

The status bar at the bottom of the screen displays real-time information:

• Cursor Position - Latitude/longitude and MGRS grid reference under cursor
• Map Scale - Current zoom level and approximate scale
• Data Source Status - Connection indicators for active connectors

Point Dropper Panel¶

The point dropper allows adding military symbols with:

• Battle Dimension - Ground, Air, Sea Surface, Subsurface, Space
• Affiliation - Friendly, Hostile, Neutral, Unknown
• Symbol Type - Unit types specific to the selected dimension
• SIDC Input - Direct entry of 15-character Symbol Identification Code

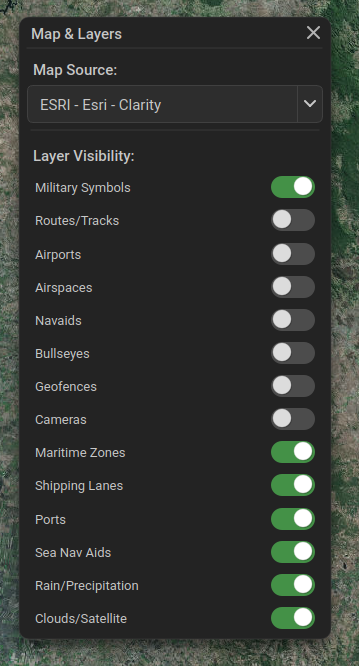

Map Layers Panel¶

Configure the map display:

• Map Source - Select from available tile providers (Satellite, Topo, Terrain, Street, etc.)
• Layer Toggles:
  • Military Symbols
  • Routes/Tracks
  • Airports
  • Airspaces
  • Navaids
  • Bullseyes
  • Geofences
  • Cameras
  • Maritime Zones
  • Shipping Lanes
  • Ports
  • Sea Nav Aids
  • Rain/Precipitation (RainViewer radar)
  • Clouds/Satellite (RainViewer infrared)

Data Sources Panel¶

Enable or disable live data connectors:

Live Data Connectors¶

The BMS supports multiple live data sources that can be enabled/disabled via the Data Sources panel:

AIS - Vessel Tracking¶

Automatic Identification System data from AISStream.io WebSocket API.

• Requirements: AISStream API key in ais_config.json
• Data: Vessel name, position, course, speed, type, flag
• Symbols: Rendered as MIL-STD-2525D sea surface symbols with affiliation based on flag

Configuration (ais_config.json):

{
    "apiKey": "your-aisstream-api-key",
    "boundingBoxes": [
        [[-90, -180], [90, 180]]
    ]
}

ADS-B - Aircraft Tracking¶

Aircraft tracking from OpenSky Network REST API.

• Requirements: Optional OpenSky credentials in adsb_config.json for higher rate limits
• Data: Callsign, position, altitude, velocity, heading
• Symbols: Rendered as MIL-STD-2525D air symbols

Configuration (adsb_config.json):

{
    "clientId": "your-opensky-username",
    "clientSecret": "your-opensky-password"
}

NMEA GPS¶

NMEA 0183 GPS data from serial port or network socket.

• Serial: /dev/ttyUSB0 at 4800/9600 baud
• Network: TCP or UDP socket
• Data: Position, altitude, speed, heading

Cursor on Target (CoT)¶

TAK/ATAK compatible CoT message receiver.

• Protocols: SA (Situational Awareness), multicast UDP, TCP
• Data: CoT events with position, type, and metadata

GTFS Transit¶

General Transit Feed Specification for public transport.

• Data: Bus, train, tram, ferry positions and routes
• Sources: Configurable GTFS-realtime feeds

JSON File¶

Load symbols from static JSON files.

• Format: Array of symbol objects with SIDC, position, and metadata

Controls¶

Bezel Buttons (F1-F12)¶

The BMS configures the side bezel buttons for map navigation:

Mouse/Touch Controls¶

When the BMS is active in the HMI:

• Click/Tap - Select symbol or place marker
• Drag - Pan the map
• Scroll wheel - Zoom in/out
• Long press on symbol - Open radial action menu

Architecture¶

DDS Topics¶

The BMS uses the following DDS topics:

Session Flow¶

Configuration¶

Map Tile Cache¶

Map tiles are cached locally in:

~/.cache/gva-bms/tiles/

Default Location¶

The BMS defaults to Brisbane, Australia (-27.4698, 153.0251) at zoom level 10. This can be modified in the source code or via command-line arguments.

Military Symbols¶

Demo symbols are loaded from:

build/bin/demo_symbols.json

The JSON file defines MIL-STD-2525D symbols with positions:

{
    "description": "Demo military symbols for BMS application",
    "symbols": [
        {
            "id": "friendly-infantry-1",
            "sidc": "SFGPUCI----E***",
            "name": "1st Infantry",
            "latitude": -27.4698,
            "longitude": 153.0251,
            "note": "Main force element"
        }
    ]
}

For detailed information about military symbols including affiliation colours, symbol sets, and SIDC codes, see the Military Symbology page.

Troubleshooting¶

BMS Not Appearing in HMI¶

1. Check Registry service is running
2. Verify DDS domain ID matches (default: 0)
3. Check BMS obtained a Resource ID in console output
4. Ensure HMI is on BMS screen (F28)

Map Tiles Not Loading¶

1. Check internet connectivity
2. Verify tile cache directory is writable
3. Try a different map layer (some may have rate limits)

Button Presses Not Working¶

1. Ensure BMS is the active application
2. Check HMI is forwarding button events
3. Verify DDS connectivity between HMI and BMS

AIS Vessels Not Appearing¶

1. Verify ais_config.json exists in the executable directory
2. Check API key is valid (get from aisstream.io)
3. Ensure AIS connector is enabled in Data Sources panel
4. Check console for WebSocket connection status

ADS-B Aircraft Not Appearing¶

1. Verify OpenSky Network is accessible
2. Check adsb_config.json for authentication (optional but recommended)
3. Ensure ADS-B connector is enabled in Data Sources panel
4. Note: Unauthenticated requests have strict rate limits

Weather Overlay Not Showing¶

1. Enable Rain/Precipitation or Clouds/Satellite in Map Layers panel
2. Weather data requires internet connectivity
3. RainViewer API may have temporary outages
4. Check zoom level - weather tiles only available at certain zoom levels

Popup Panels Not Responding to Clicks¶

1. Drag the panel by its title bar only
2. Ensure you're clicking on the toggle/dropdown, not the panel background
3. Check if panel is fully visible within window bounds
